Section 4 – Implement an Identity Management Solution – Implement and manage hybrid identity - AADC, Cloud Sync and PHS

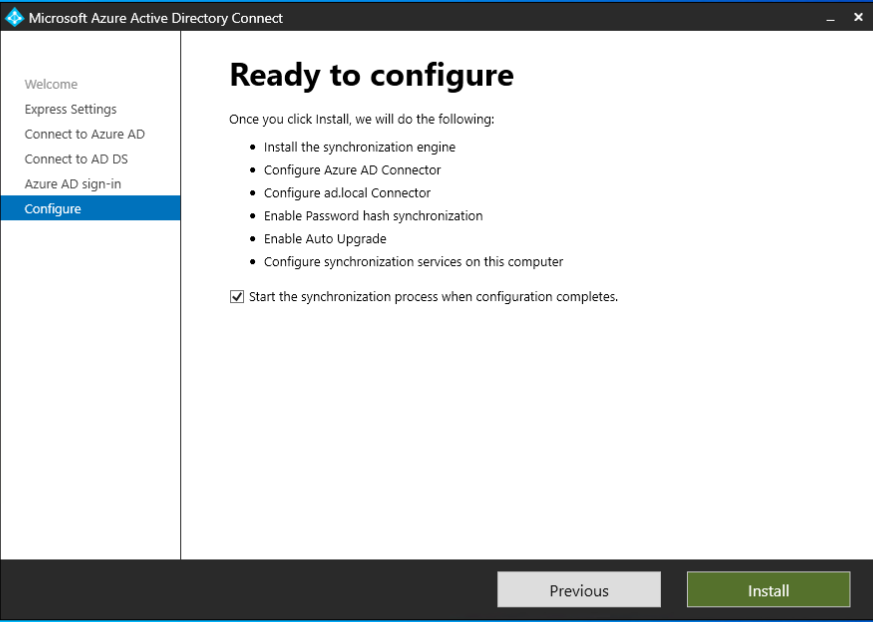

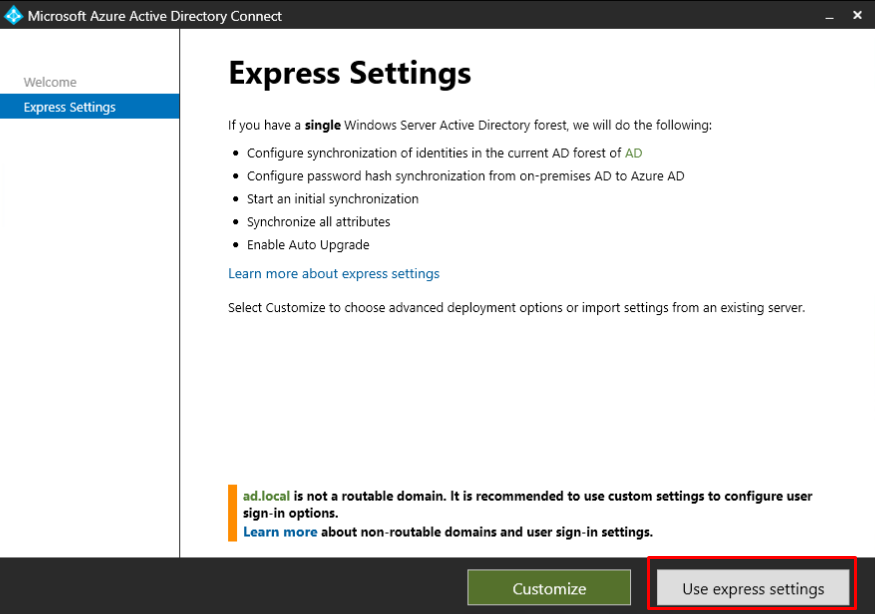

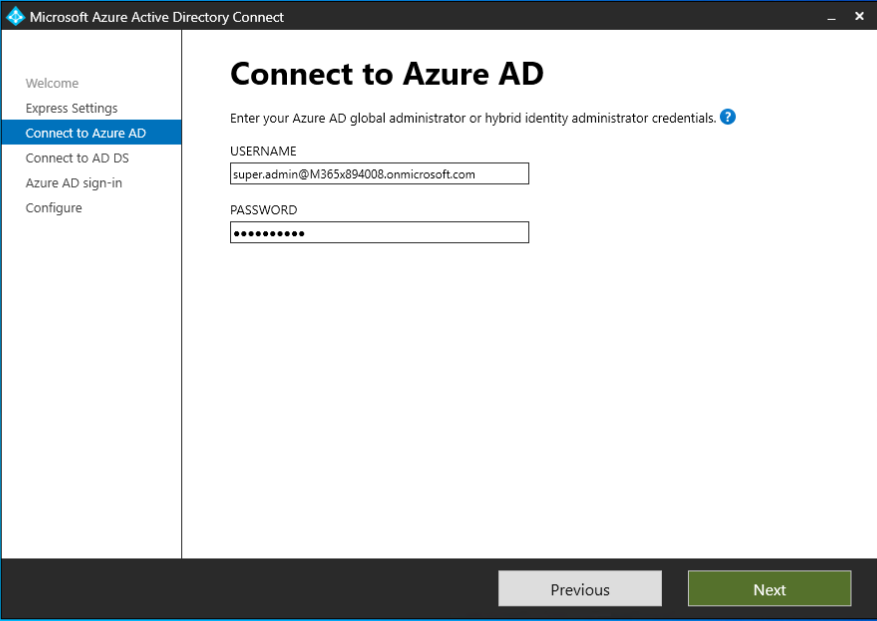

By default it will configure the following.

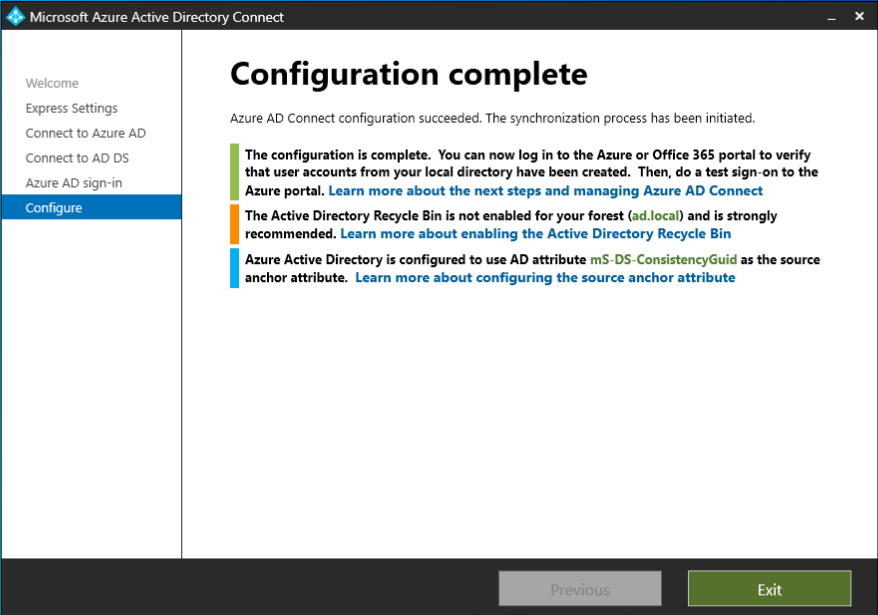

Initial sync and aftermath

When the initial sync is done, You can see the users in the portal and all except one have wrong UPN suffix.

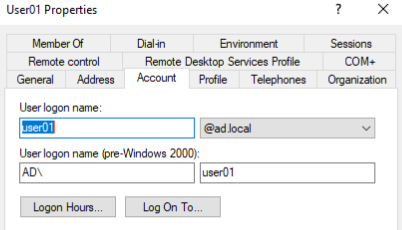

The one having a right one has the right Suffix inside local AD.

and the rest only the local domain.

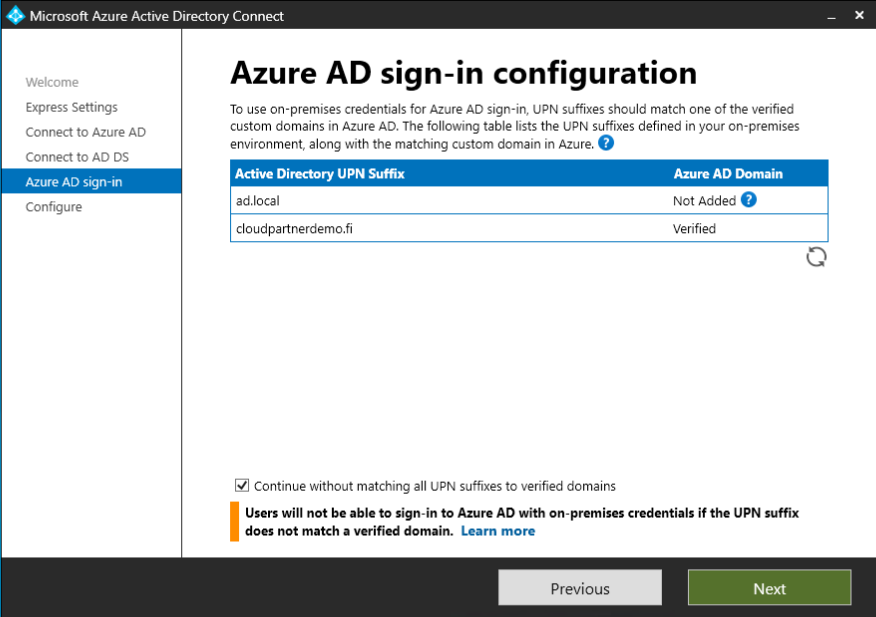

So You can sync users to the cloud but they will be created with default tenant name suffix, not good.

Adding UPN and modifying the users

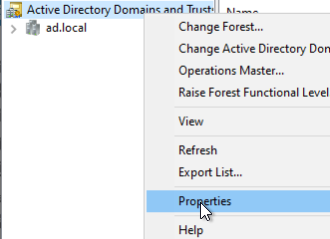

From old habits I always add the UPN from Domains and Trusts, then properties.

Add Your domain and hit OK.

If You don't already have Your Custom Domain inside Azure AD, now it's the time to add it.

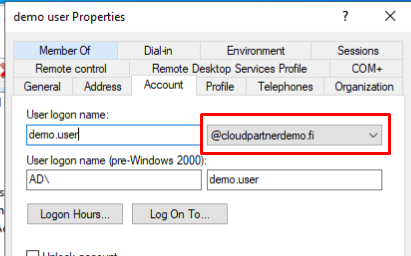

Changing user Suffixes

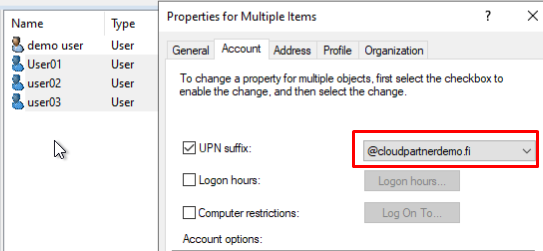

Select all, properties and change the UPN to all at once.

Open PowerShell and run.

Start-ADSyncSyncCycle -PolicyType Delta -Verbose

You can also run -PolicyType Initial but there's no sense at this point.

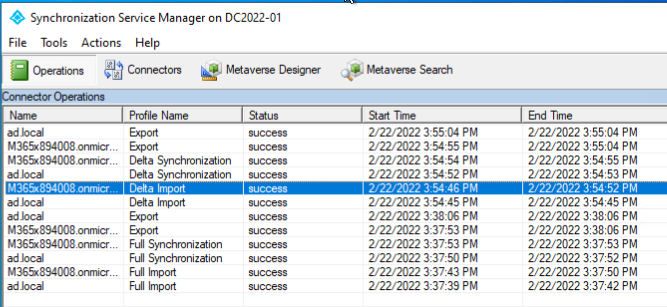

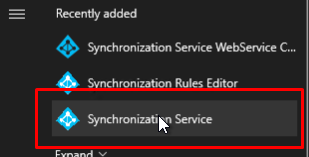

Search for Synchronization Service

And You will see the syncing happening.

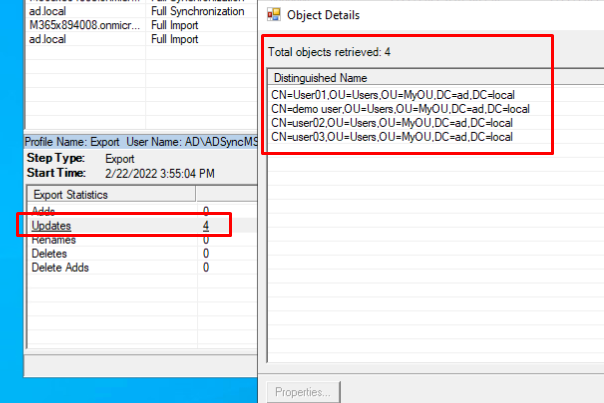

And there is updates.

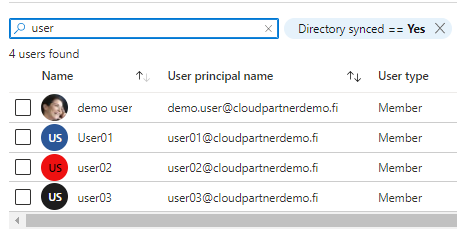

Success!

Troubleshooting

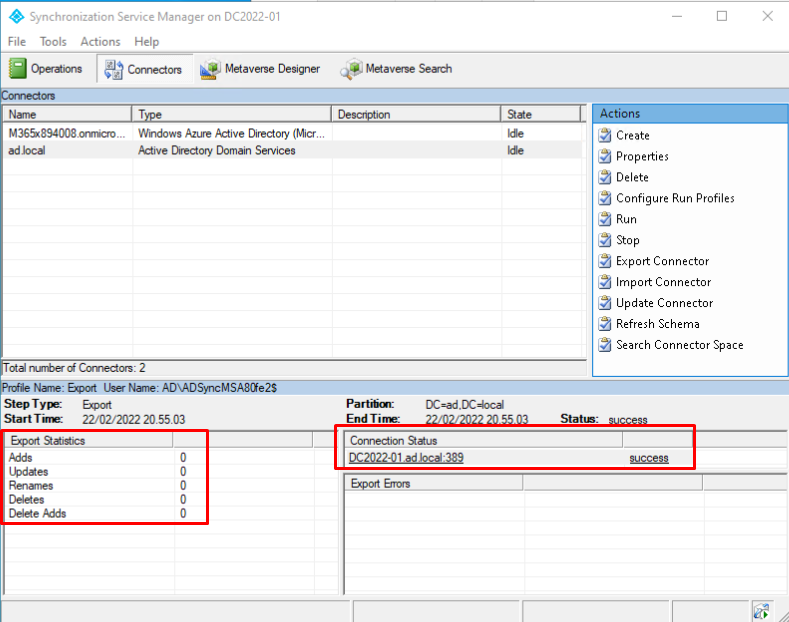

You use Synchronization Service Manager to debug the sync.

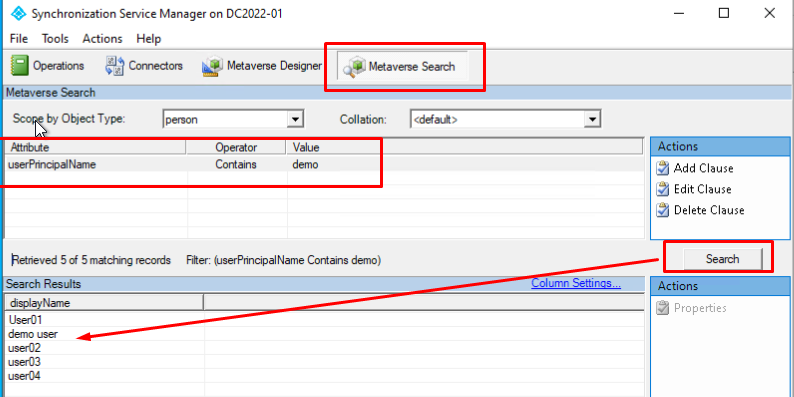

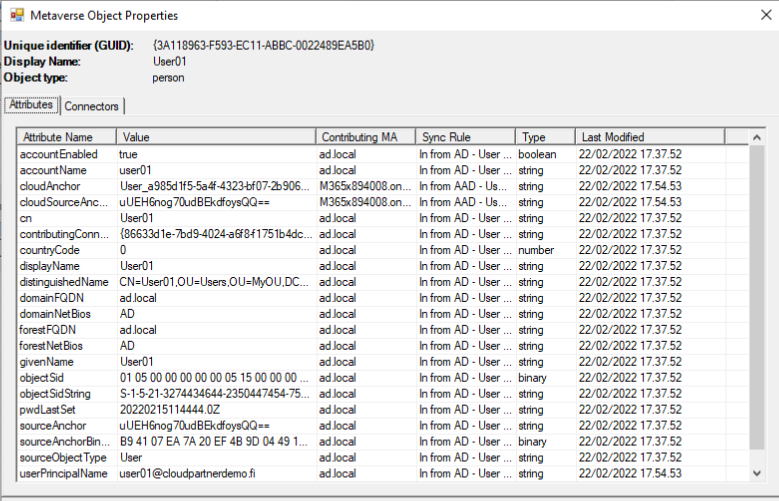

Or metaverse search to find users and their attributes.

Implement and manage Azure AD Connect cloud sync

With Azure AD Connect cloud sync, provisioning from AD to Azure AD is orchestrated in Microsoft Online Services. An organization only needs to deploy, in their on-premises or IaaS-hosted environment, a light-weight agent that acts as a bridge between Azure AD and AD. The provisioning configuration is stored in Azure AD and managed as part of the service.

Installation prerequisites

• Identify a domain-joined host server running Windows Server 2016 or greater with minimum of 4 GB RAM and .NET 4.7.1+ runtime
• If there is a firewall between your servers and Azure AD, configure the following items:

• If your firewall or proxy allows you to specify safe suffixes, then add connections t to *.msappproxy.net and *.servicebus.windows.net. If not, allow access to the Azure datacenter IP ranges, which are updated weekly.
  • Your agents need access to login.windows.net and login.microsoftonline.com for initial registration. Open your firewall for those URLs as well.
  • For certificate validation, unblock the following URLs: mscrl.microsoft.com:80, crl.microsoft.com:80, ocsp.msocsp.com:80, and www.microsoft.com:80. Since these URLs are used for certificate validation with other Microsoft products you may already have these URLs unblocked.

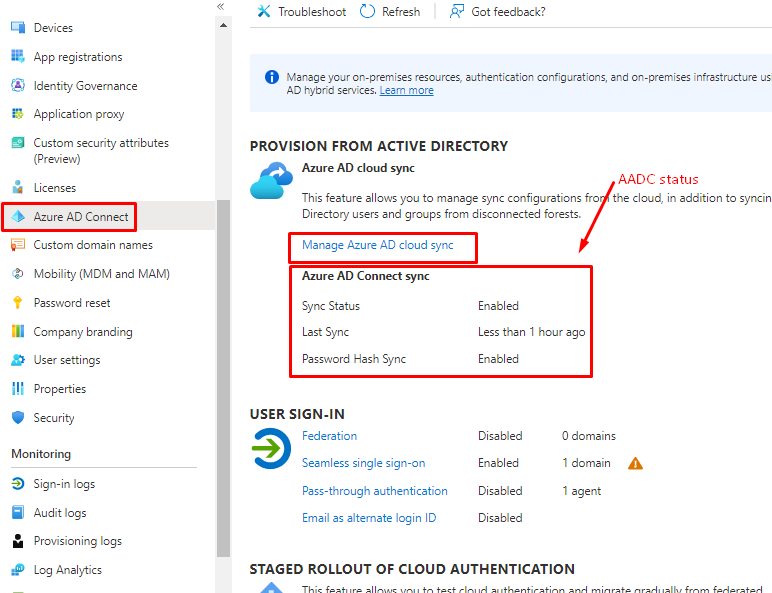

Open Azure AD Connect page and choose Manage Azure AD cloud sync.

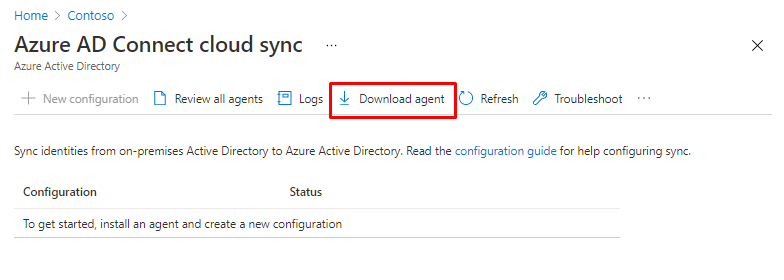

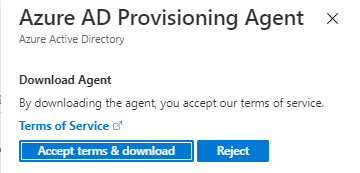

Nothing here, just download agent.

You have to login for download.

Once done, start install.

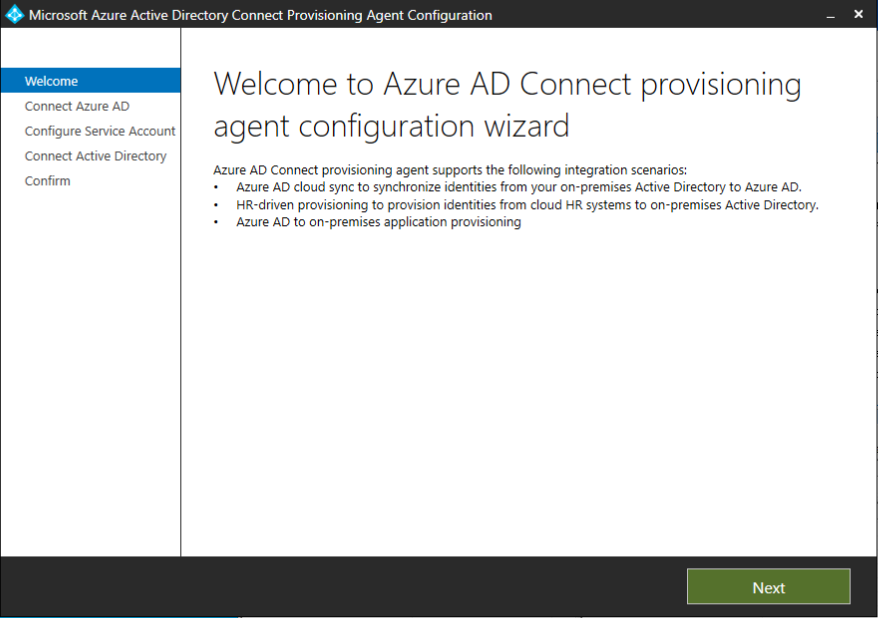

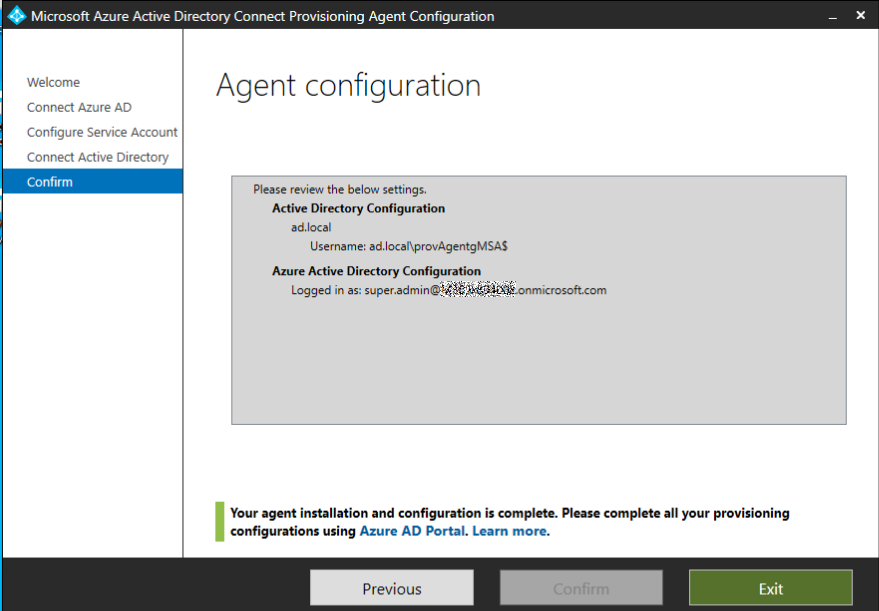

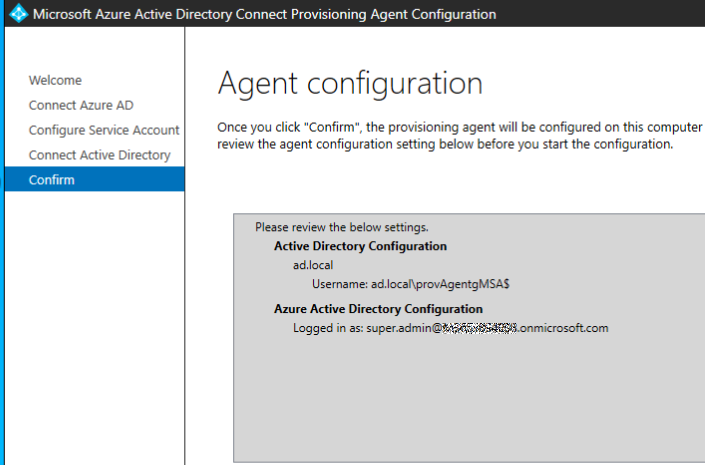

Installation

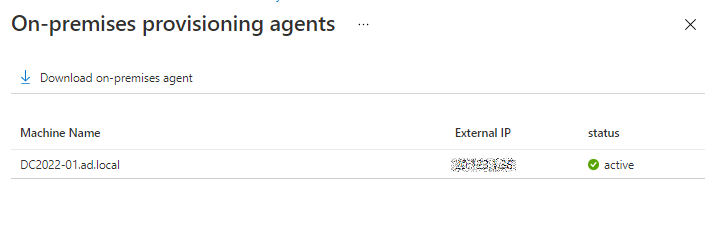

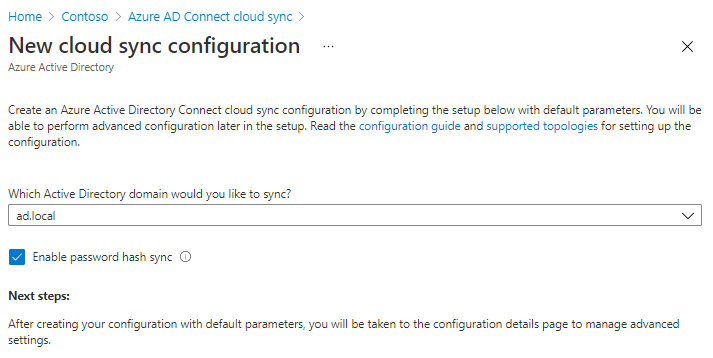

Azure portal configs

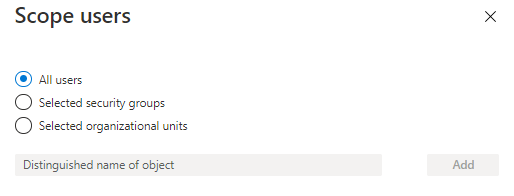

After done, You can scope users, groups or OU's. You have to enter groups and OU's as Canonical names, there is no browse possibility.

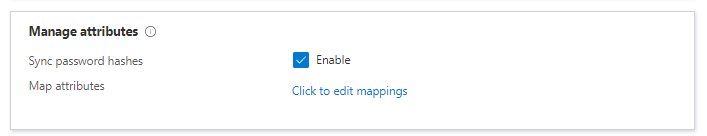

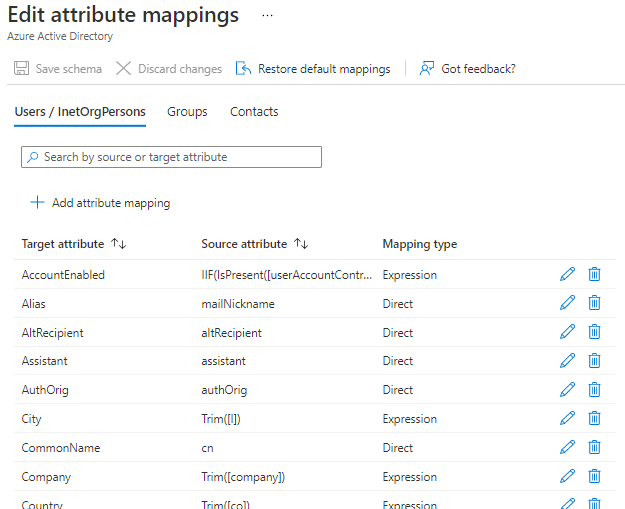

You can also map different attributes, just like with Azure AD Connect.

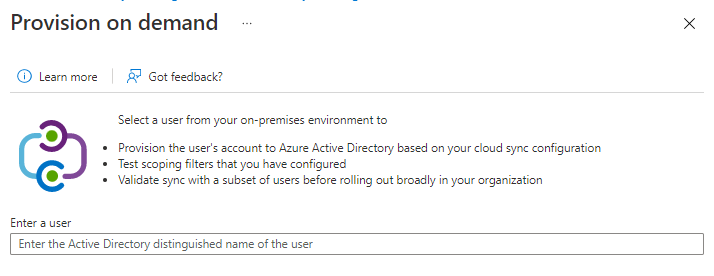

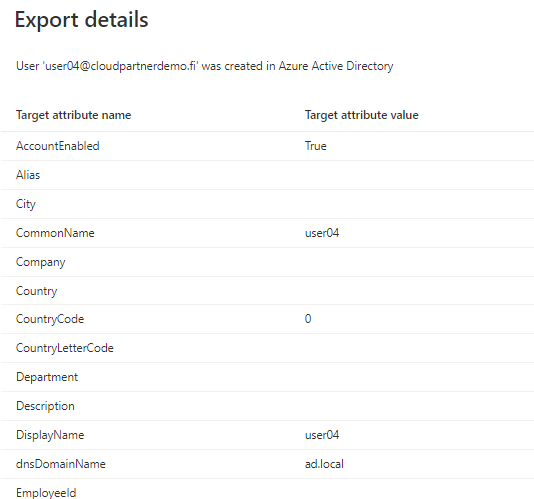

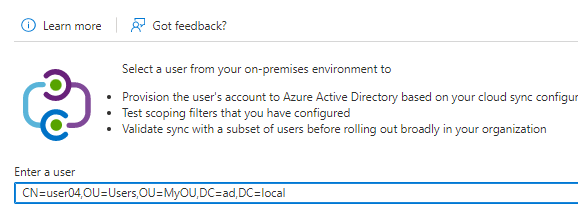

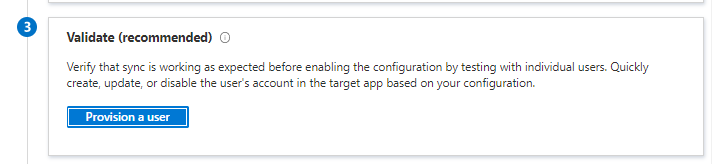

And validating the config with a user.

I hate when there is no browse option.

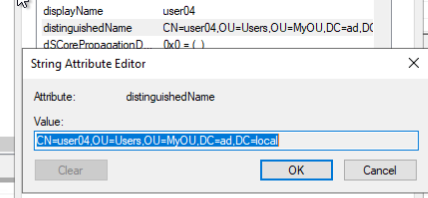

User Canonical name

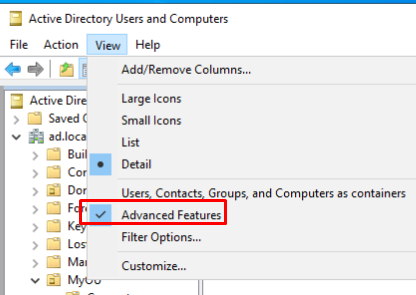

Enable Advanced features.

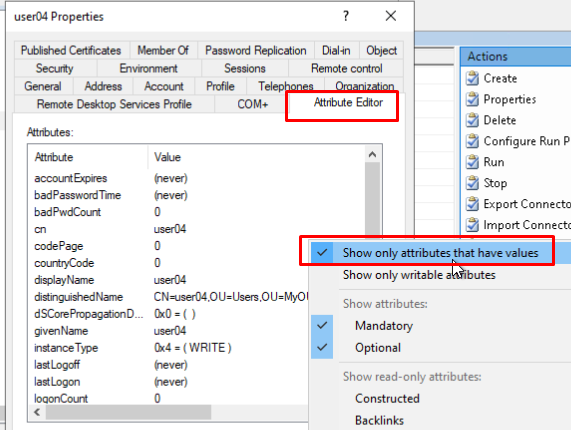

Open user, properties and choose "Show only attributes that have values" not needed but make search easier.

And there You go.

copy / paste to Azure AD.

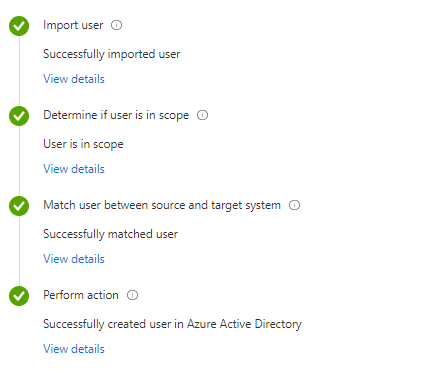

And success!

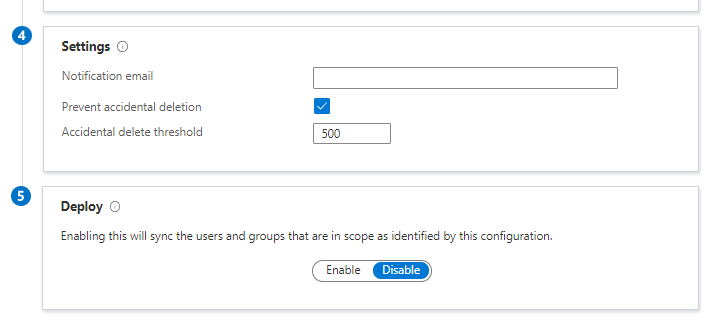

Set notification email and finally enable the sync.

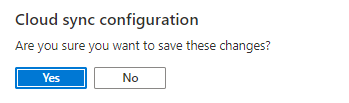

You are sure and go.

Troubleshooting

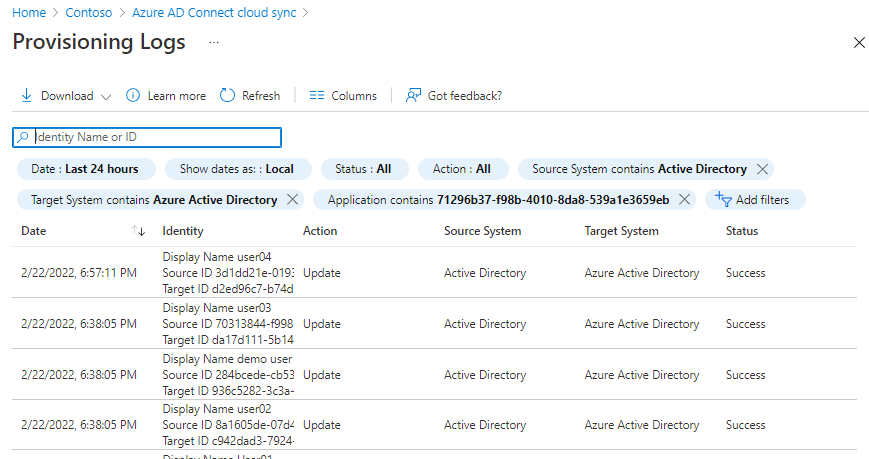

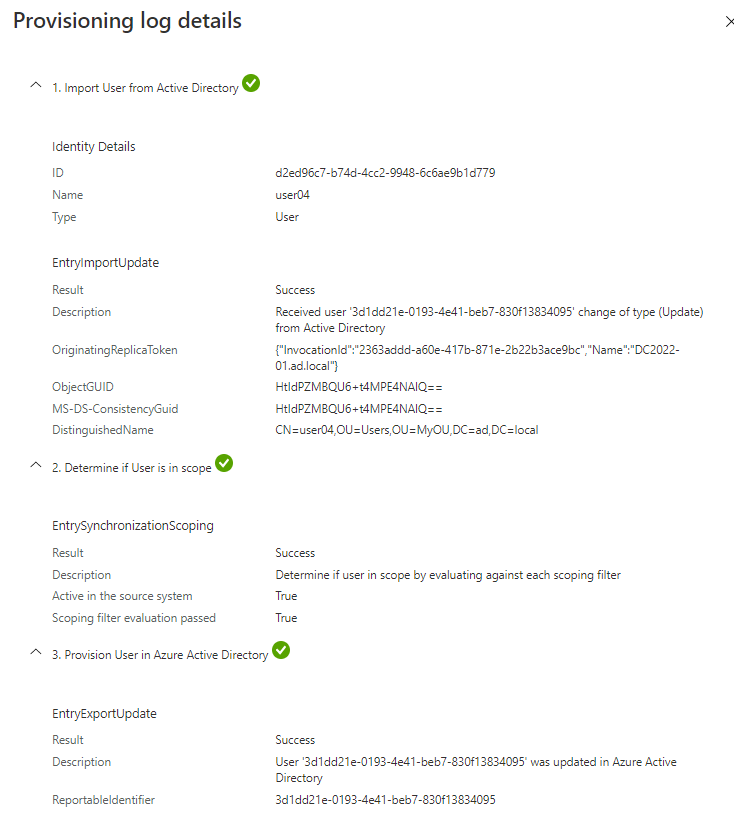

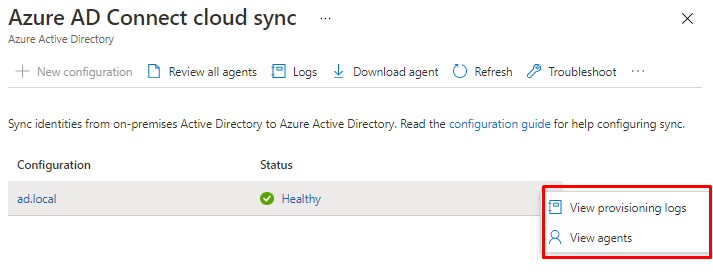

You can debug the cloud sync agent from Provisioning logs.

Click to find more debugging info.

Implement and manage Password Hash Synchronization (PHS)

Cloud sync

Azure AD Connect

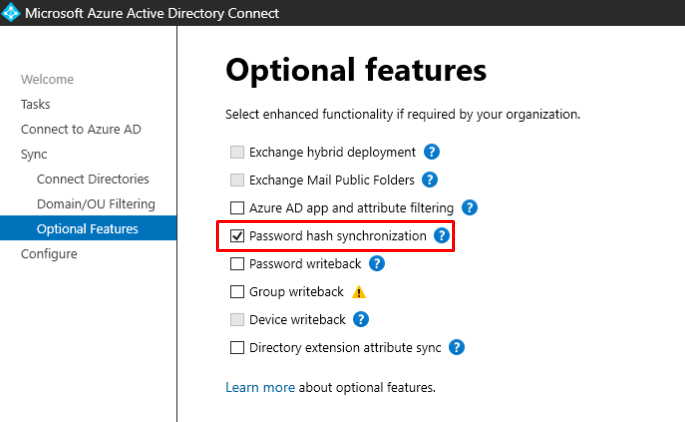

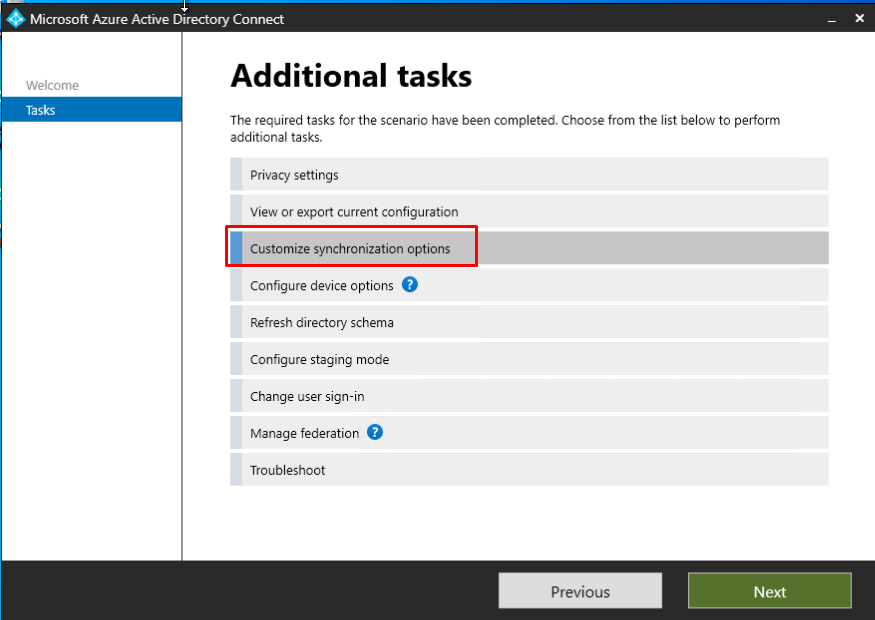

In the Optional features You can find PHS but it's enabled by default.

If You want to check the password policies for a user, You can do it with the follwing

(Get-AzureADUser -objectID <User Object ID>).passwordpolicies

And Enforce the cloud-based password policies.

Set-MsolDirSyncFeature -Feature EnforceCloudPasswordPolicyForPasswordSyncedUsers

Once enforced, Azure AD does not go to each synchronized user to remove the DisablePasswordExpiration value from the PasswordPolicies attribute. Instead, the DisablePasswordExpiration value is removed from PasswordPolicies during the next password hash sync for each user, upon their next password change in on-premises AD.

To support temporary passwords in Azure AD for synchronized users, you can enable the ForcePasswordChangeOnLogOn feature, by running the following command on your Azure AD Connect server:

Set-ADSyncAADCompanyFeature -ForcePasswordChangeOnLogOn $true

But You should enable Self-service Password reset (SSPR) before settings forced password changes.

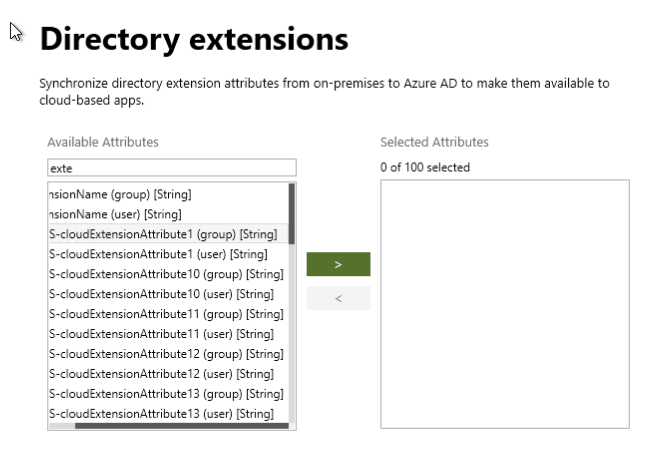

In this menu You can also enabled Directory extension sync, which can be used ex. with Dynamic groups.

Things to remember

In both solutions the UserPrincipalName Suffix has to changed to match the Verified Custom Domain in the cloud to provide the rights sign-in name.

By default both solutions enable Password Hash Synchronization (PHS).

Here is the full list of differences compared by Microsoft.

Azure AD Connect:

• Is the most versatile syncing solution from these two.
• Support Exchange Hybrids, Cloud sync currently doesn't
• Should be treated as Tier 0 server (More info)
• The first sync is called Initial and secondary is Delta. You can force Initial sync with Start-ADSyncSyncCycle -PolicyType Initial
• You must have an Azure AD Global Administrator account or Hybrid Identity Administrator rights in Azure.

Azure AD Cloud Sync:

• Can provisioning users and groups to On-premises AD with SCIM.
• Is a lightweight solution and it doesn't have any database. All configuration files are in the cloud.

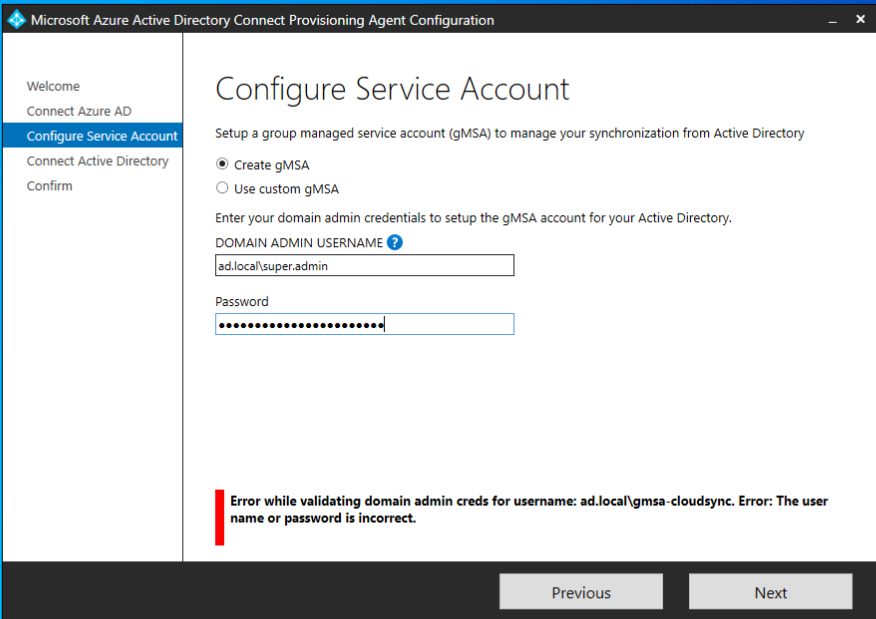

• You have to use an Group Managed Service Account (gMSA) for the agent.
• The common scenarios include merger & acquisition (where the acquired company's AD forests are isolated from the parent company's AD forests), and companies that have historically had multiple AD forests.
