Section 12 - Mitigate threats using Microsoft Sentinel - Perform data classification and normalization

12th section starting with more Sentinel. This time we are classifying Entities, creating custom log in Log Analytics and parsing the content.

So let's do some designs and configurations.

Classify and analyze data by using entities

You can do the following in Entity pages:

• View related entities: The entity page lists every entity connected to the one you've chosen. For instance, the entity page for a person may show connected IP addresses and devices.
• View entity fields: The entity page lists each field connected to the entity you chose. For instance, the name, IP address, and operating system of a device may be displayed on its entity page.
• Check out latest activity: All of the most recent activity connected to the chosen entity are shown on the entity page. For instance, a user's entity page may show recent logins and file accesses.

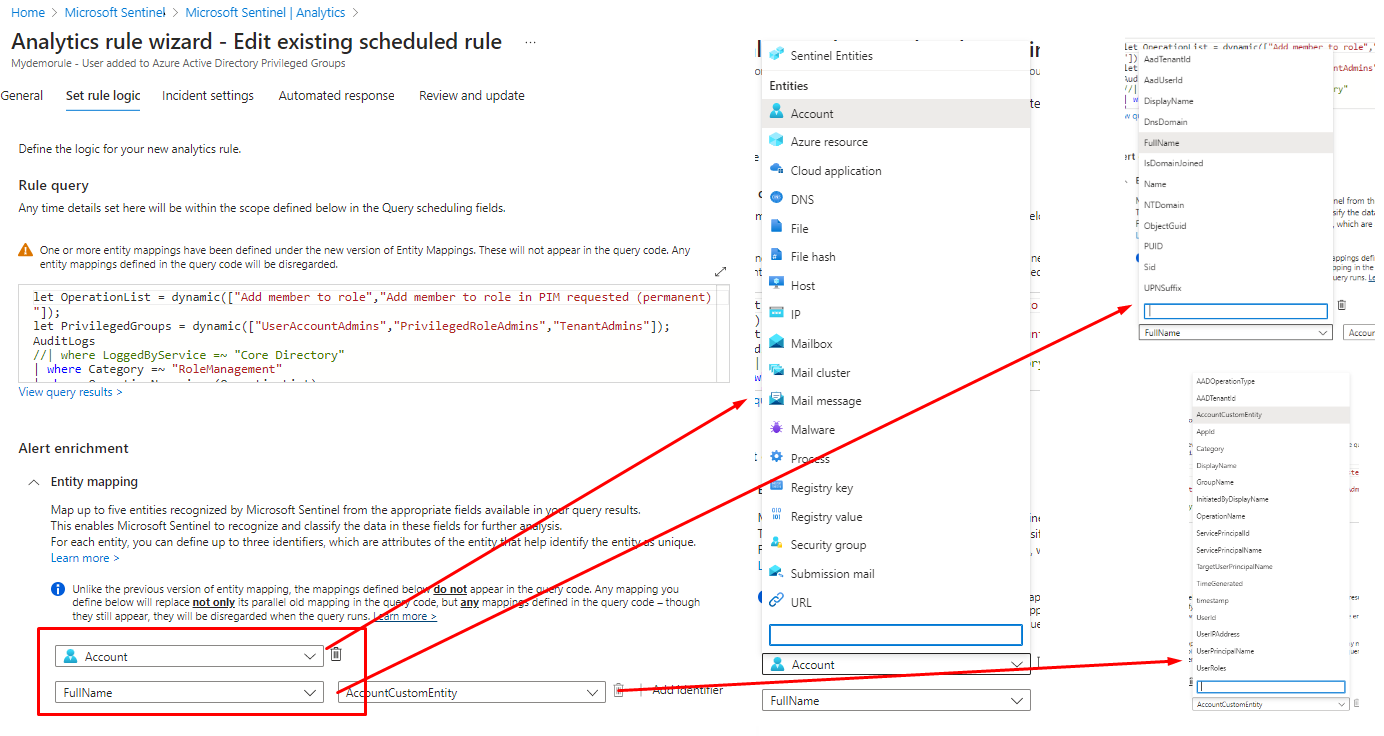

When you create a new rule under Sentinel -> Analytics or edit an existing one, you will find the Entities under Rule logic.

Microsoft Sentinel recognizes the following entity types:

In example the following are strong identifiers of an User entity:

• Name + UPNSuffix
• AadUserId
• Sid + Host (required for SIDs of builtin accounts)
• Sid (except for SIDs of builtin accounts)
• Name + NTDomain (unless NTDomain is a builtin domain, for example "Workgroup")
• Name + Host (if NTDomain is a builtin domain, for example "Workgroup")
• Name + DnsDomain
• PUID
• ObjectGuid

And this presents a weak identifier of an account entity:

• Name

Microsoft Sentinel entity types reference

This article displays the Microsoft Sentinel entity types and their required identifiers.

You can the user Entities to map data fields to them.

Map data fields to Microsoft Sentinel entities

Map data fields in tables to Microsoft Sentinel entities in analytics rules, for better incident information

Create custom logs in Azure Log Analytics to store custom data

What should you considering when creating an Custom log:

• Define the data you wish to gather. It might be challenging to handle and interpret data that has been gathered in excess.
• Don't complicate the log schema. Use the fewest possible fields and data types. Unless absolutely required, avoid utilizing sophisticated data types like arrays or objects.
• Field names should be evocative. Field names ought to be clear and informative.
• Maintain a standard naming convention. Use a naming scheme that is constant for both the log and field names.
• Send information in a standardized manner to the log. Ensure that the information you provide to the log complies with the log schema.

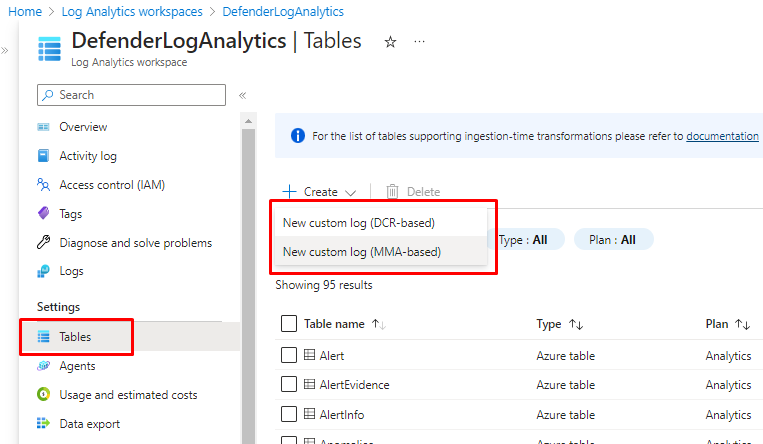

Go to Log analytics -> Tables and choose New Custom Log, either DCR or MMA based.

Just for clarity:

• MMA is Azure Monitoring Agent
• DCR means Data Collection Rules

To better understand what DCR is, see this table from Microsoft.

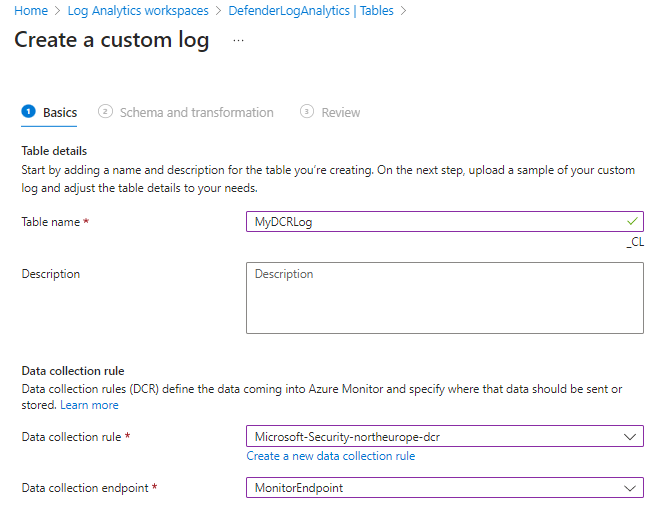

And then selecting the Data endpoints and previously created Collection rules or you can also create a new one.

Note that _CL is added automatically as suffix.

You need at least Log analytics contributor to create the new schema

Manage access to Log Analytics workspaces - Azure Monitor

This article explains how you can manage access to data stored in a Log Analytics workspace in Azure Monitor by using resource, workspace, or table-level permissions.

See from Learn on how to create a custom log and remove it.

Add or delete tables and columns in Azure Monitor Logs - Azure Monitor

Create a table with a custom schema to collect logs from any data source.

Read Jeffrey's post on AMA and DCR for deeper understanding on the subject.

Collect Security Events in Microsoft Sentinel with the new AMA agent and DCR

The Microsoft Sentinel Data Connector that utilizes the modern agent (AMA) for collecting Windows Security Events is for a couple of months general available. The Log Analytics/MMA agent will be retired in 2024, which seems like a long way off. Preparing to use…

Query Microsoft Sentinel data by using Advanced SIEM Information Model (ASIM) parsers

Some reason why you would use ASIM:

• Detection of cross-sources. Assertions like brute force or impossible travel between systems, such as Okta, AWS, and Azure, are caught by normalized analytics rules that operate across sources, both on-premises and in the cloud.
• Any source that supports ASIM is immediately included in the coverage of both built-in and bespoke content that uses ASIM, even if the source was added after the content was generated. Process event analytics, for instance, support any data source a client may employ, including Microsoft Defender for Endpoint, Windows Events, and Sysmon.
• Support for your individual sources, integrated analytics

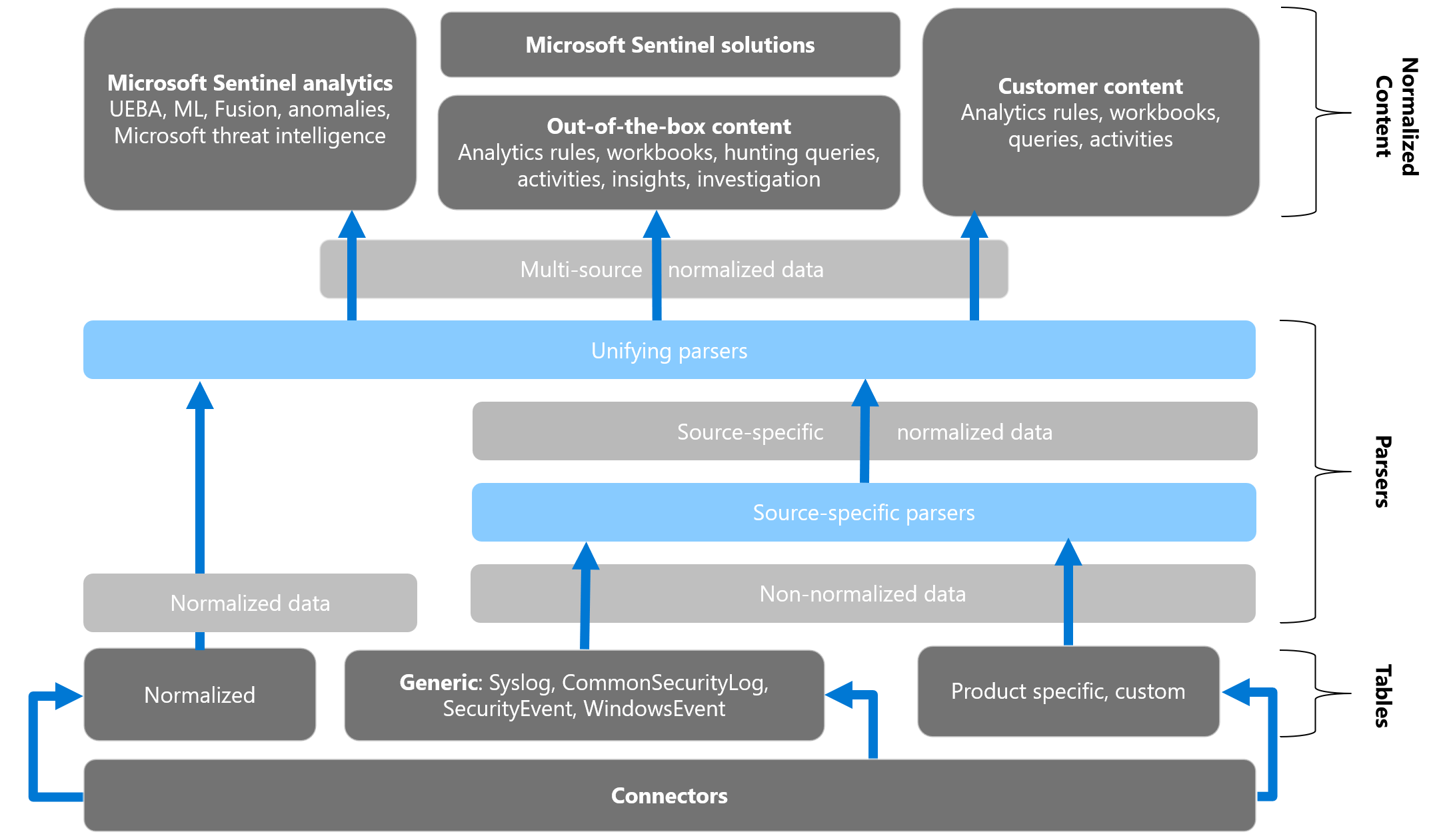

And here is a good visualization from Microsoft on ASIM framework

And see here for ASIM schemas from Learn.

Advanced Security Information Model (ASIM) schemas

This article explains Advanced Security Information Model (ASIM) schemas, and how they help. ASIM normalizes data from many different sources to a uniform presentation.

Note! If it isn't clear for now, ASIM parsers are KQL Functions

Now when we have the basics information, we can see how to query.

Azure-Sentinel/Parsers/ASimDns at master · Azure/Azure-Sentinel

Cloud-native SIEM for intelligent security analytics for your entire enterprise. - Azure-Sentinel/Parsers/ASimDns at master · Azure/Azure-Sentinel

First you can open Sentinel GitHub repository.

Azure-Sentinel/ASIM at master · Azure/Azure-Sentinel

Cloud-native SIEM for intelligent security analytics for your entire enterprise. - Azure-Sentinel/ASIM at master · Azure/Azure-Sentinel

In example under the repo there is this parser that you can deploy

Azure-Sentinel/Parsers/ASimDns at master · Azure/Azure-Sentinel

Cloud-native SIEM for intelligent security analytics for your entire enterprise. - Azure-Sentinel/Parsers/ASimDns at master · Azure/Azure-Sentinel

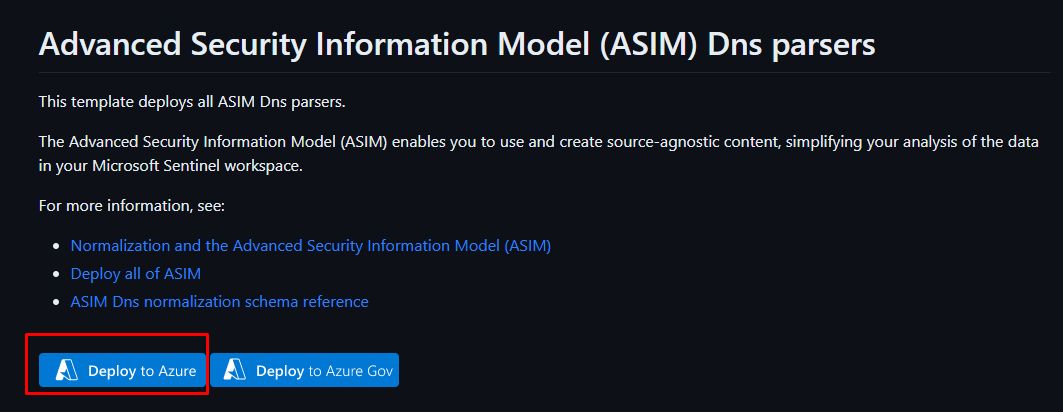

Click Deploy to Azure

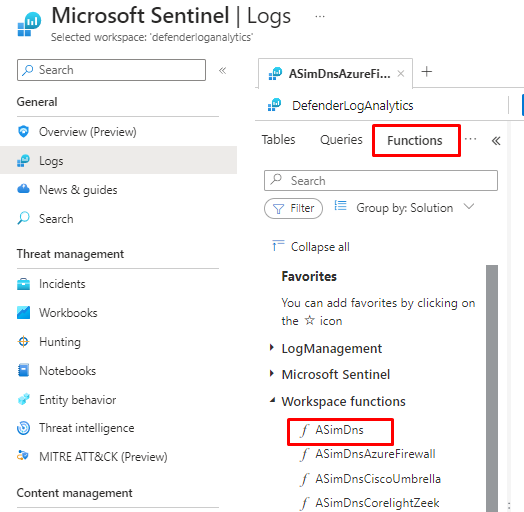

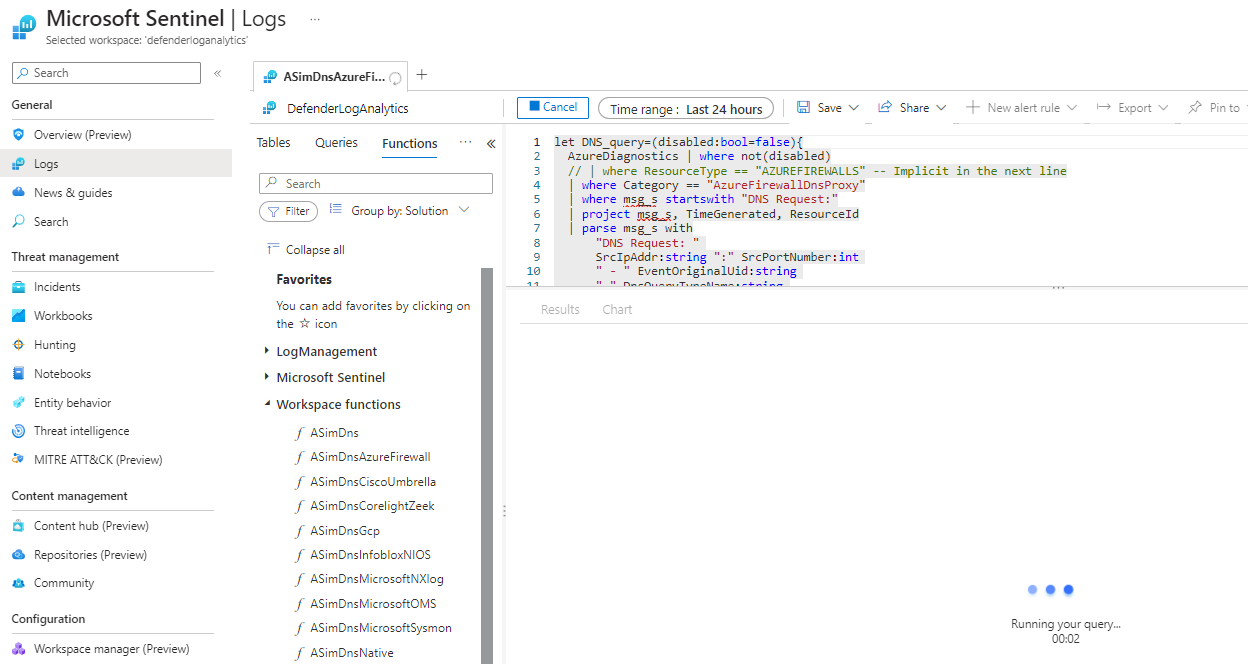

And once deployed, you can find it under Logs and Functions

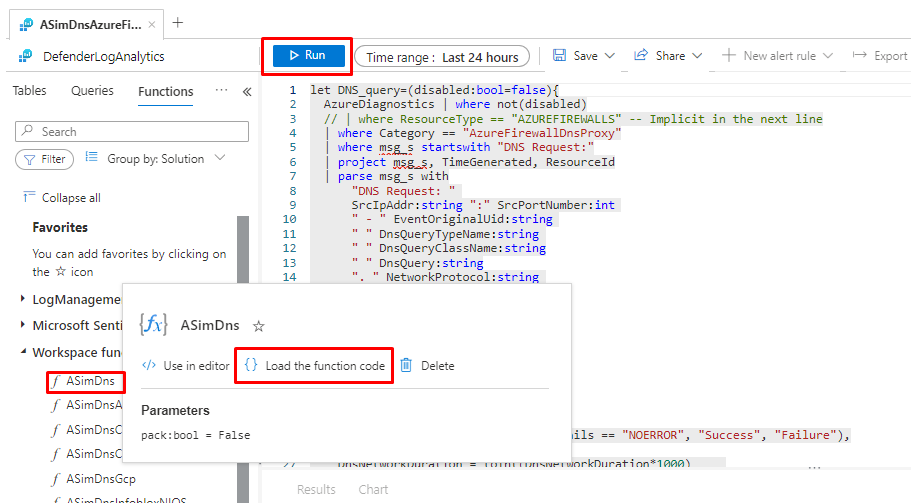

And then load the Function

And the run the function you just loaded

Here is a Lab for deploying ASIM parsers

SC-200T00A-Microsoft-Security-Operations-Analyst

In this task, you will deploy the Registry Schema parsers from the Microsoft Sentinel GitHub repository.

And from here you can find an interactive simulation for creating parsers

Develop and manage ASIM parsers

The process of developing parsers could be this:

• Gather test logs.
• Determine which schema(s) the events coming from the source represent. See Schema overview for further details.
• Connect the fields from the source event to the identified schema or schemas.
• Create a parser or parsers for ASIM for your source. For each schema pertinent to the source, you must create a filtering parser and a parameter-free parser.
• Run a parser test.
• Install the parsers in the workspaces for Microsoft Sentinel.
• The new custom parser should be referenced in the appropriate ASIM unifying parser. Managing ASIM parsers has further details.
• Additionally, you might wish to add your parsers to the main ASIM distribution. Contributed parsers may also be included as built-in parsers in all workspaces.

Here is an excellent presentation from Microsoft on ASIM parsers and how to query, Manage and develop them.

And here is a list of ASIM content from Learn

Advanced Security Information Model (ASIM) security content

This article outlines the Microsoft Sentinel security content that uses the Advanced Security Information Model (ASIM).

Closure

As a recap, you should understand the Entity mapping and types that you can use

• User account
• Host
• IP address
• Malware
• File
• Process
• Cloud application
• Domain name
• Azure resource
• File hash
• Registry key
• Registry value
• Security group
• URL
• IoT device
• Mailbox
• Mail cluster
• Mail message
• Submission mail

What should you considering when creating an Custom log?

How Custom logs can be populated?

How ASIM framework look like, what are ASIM parsers (KQL functions) and how to deploy them?

What is the process of developing your own? What should you consider?
